Strong. Secure. Reliable.
Our roller shutter doors are designed for maximum security, durability and smooth operation. Built with high-quality materials, they provide reliable protection for industrial, commercial and residential applications.
Product Overview
Sandwich Panel
Corrugated Profile Sheets
Metal Decking Sheet
Z & C Purlins
Translucent Sheet
Flashings
Roller Shutter Doors
Accessories

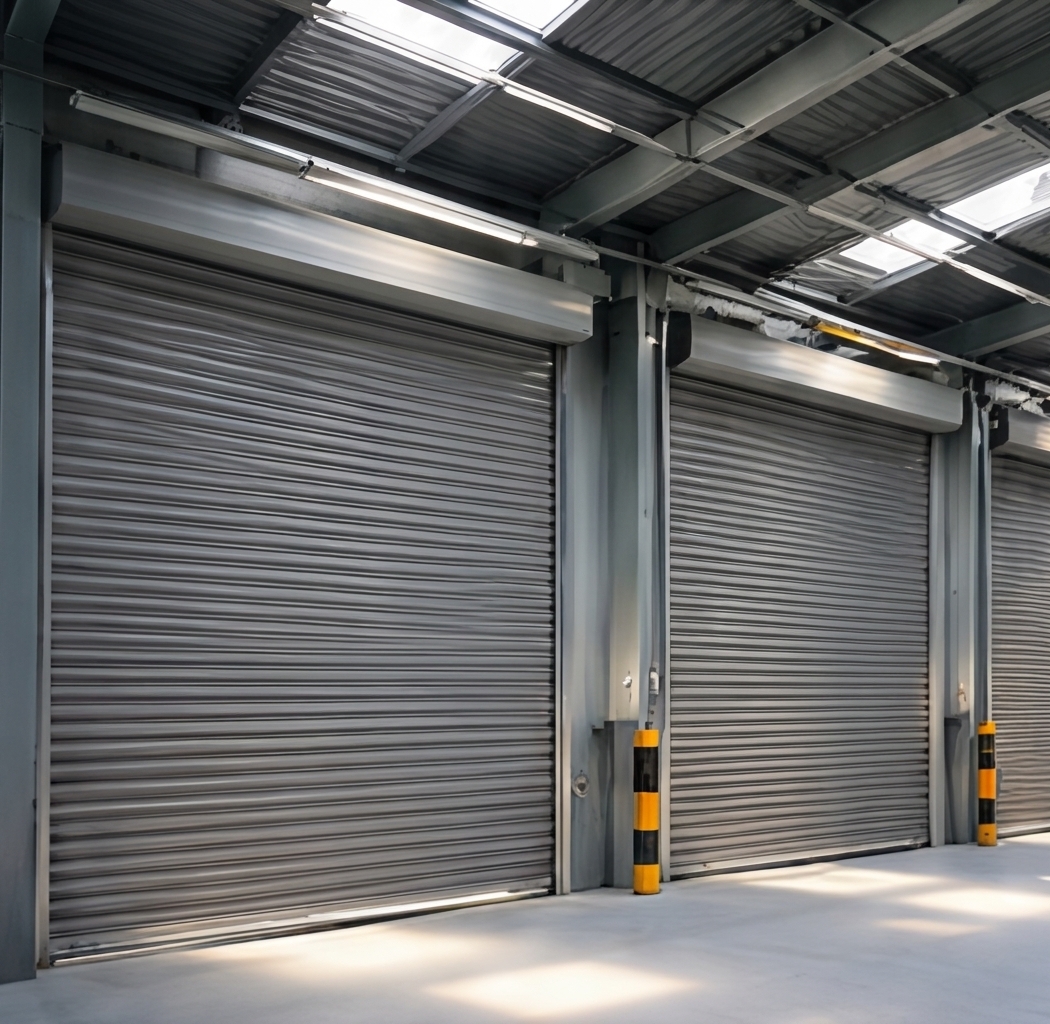

Roller Shutter Doors
The shutter curtain is constructed from cold rolled galvanized coil/steel sheets (75mm), or suitable gauge to suit the application. Each lath is retained pressed steel from one lock fixed with galvanized steel rivets. Cast iron wind locks are fitted to help prevent the curtain being forced out of the guide during high winds, as and when required.
Heavier duty Roller Shutter Doors are widely used in the building industry. Less noise, ease of operation, no grease required. Manufactured from 75mm x 0.5mm–1.7mm & 1.5mm galvanised material. Can be manufactured up to 4000 mm (W) meters. Available in a range of standard colors / powder coated.
Our Factory
Our factory is in the industrial center of Barka, Oman. Our present premises were established in 2009.
CURTAIN
Constructed from roll formed galvanized steel interlocking slats with effective width of 100mm. 0.5 steel thickness available dependent on door size and location.
BOTTOM RAIL
Bottom rail is 40mm x 40mm MS angle bolted to bottom slat on curtain. On wider doors 2 angles welded back to back to provide extra strength.
SIDE GUIDES
Galvanized roll formed steel channel with a minimum depth of 50mm and fitted with formed top entry bell mouth. Option as 75–100mm deep tracks.
BRACKETS
Shall be fabricated from at least 8mm mild steel plate and angle. Plates slotted to accommodate shaft and chain or motor mounting. Plates and angles zinc plated finish.
Need a Custom Solution ?
Our team is ready to help you find the right product for your project.
